68 key wireless keyboard kit with full ZMK support, EZ-VIK connectivity for add-ons, and a unique gasket mount PCB design utilizing shift registers to allow for a full 68 keys with a much more compact MCU. Supports MX, Choc v1, Choc v2, and Gateron KS-33 hotswap sockets (coming soon) All you need to bring is a set of XIAO nRF52840s and two 702030 batteries. 3D printed cases coming soon.
Includes the following:

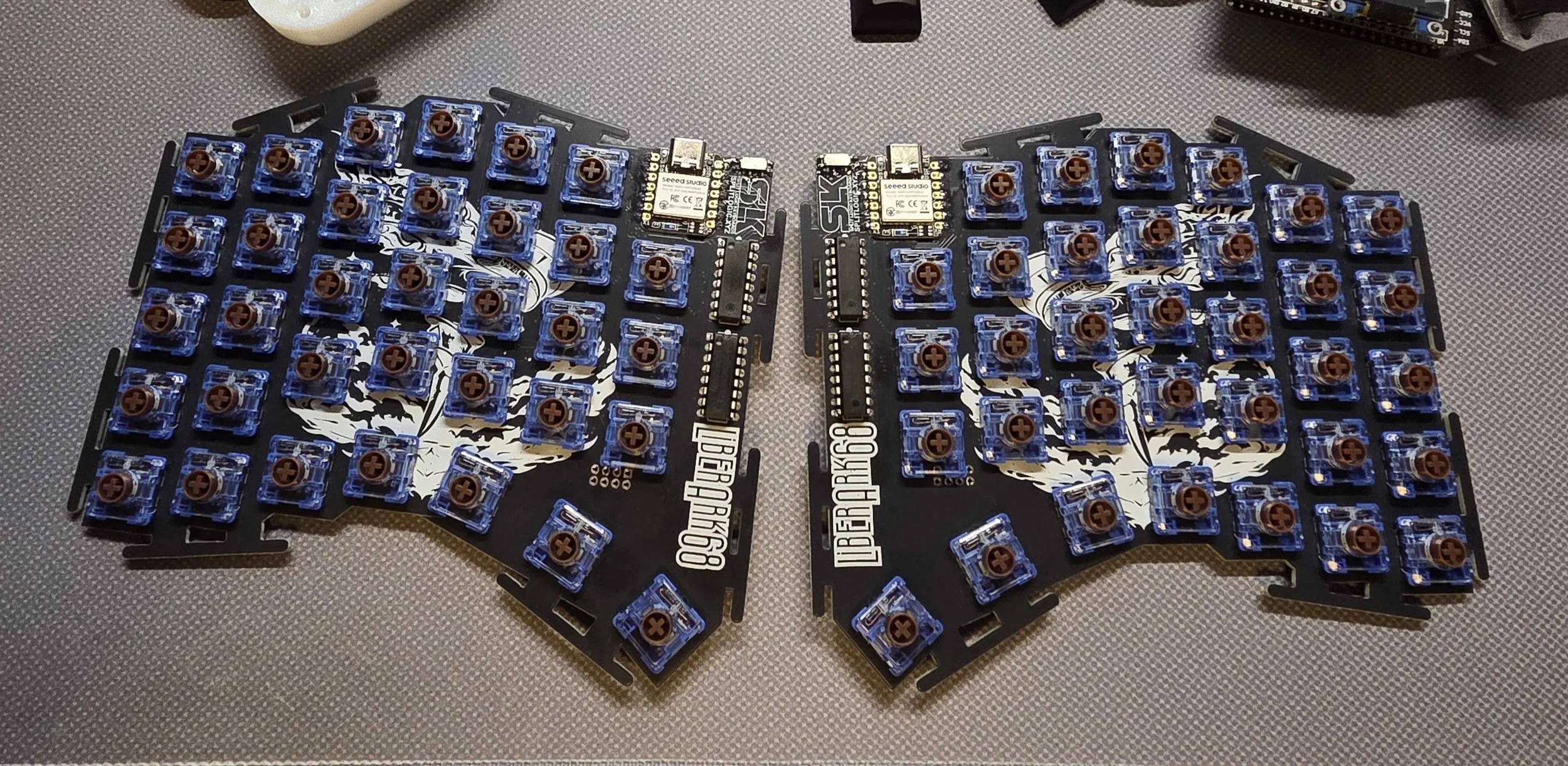

2x LiberArk68 PCBs
68x MX or Choc Hotswap Sockets
68x SOD-123 Diodes
4x DIP package 74HC595 Shift Registers
2x EZ-VIK boards
4× 100nf Caps
2x Battery Connecctors
Needed to finish the build:
2x XIAO nRF52840s
2x 702030 (or smaller) batteries

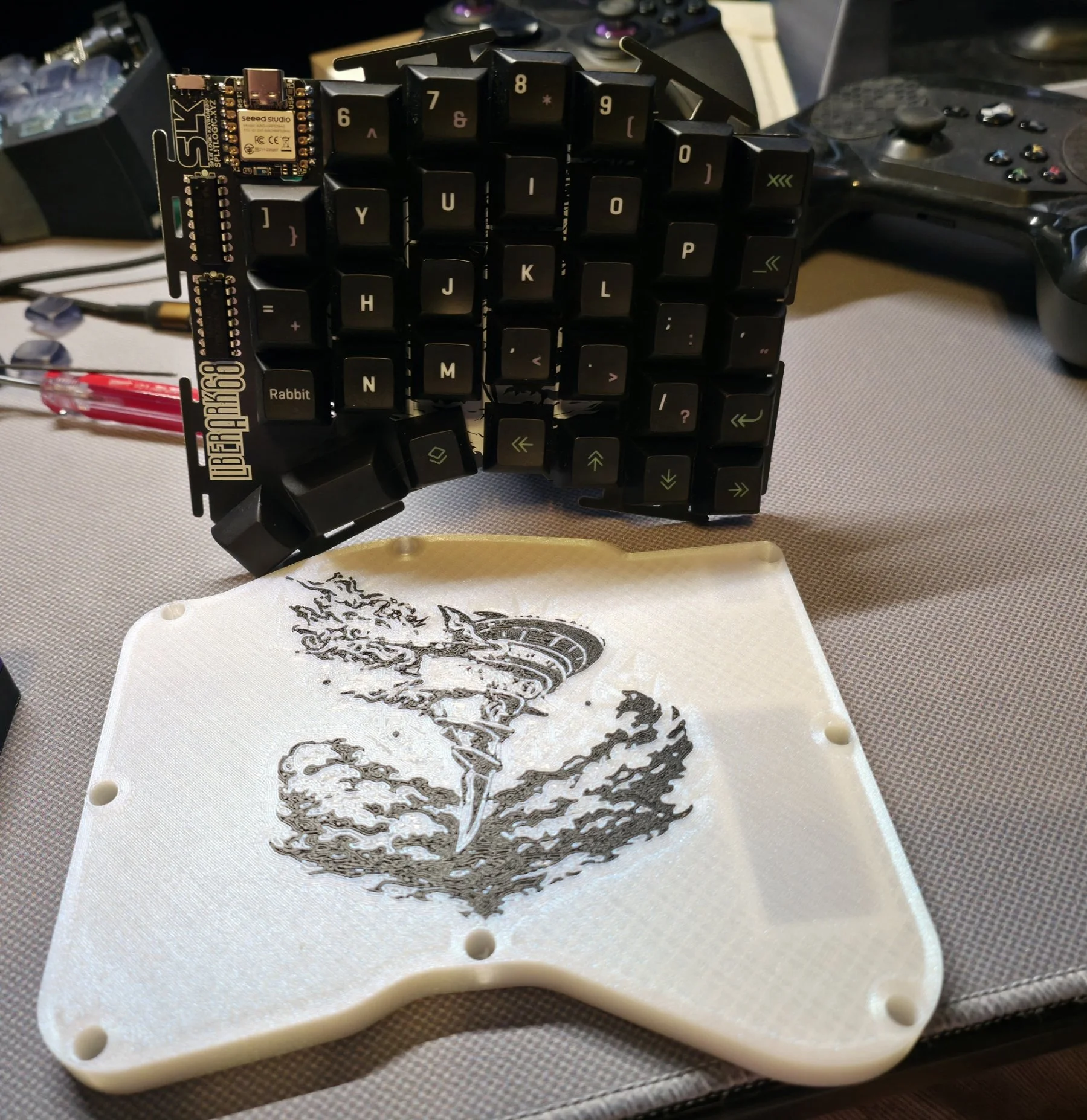

3D Printed Case
20x M3×6 socket head screws
20x M3 x 5 x 4 mm heatset inserts
3mm or 4mm Poron (or similar) foam for gasket mounting
Optional: Additional VIK Modules or accessories, currently support the VIK-Roller handwired encoders, and TPS43 and TPS65 touchpads.
